AXIOM Nautilus Specifications

Single Channel Temperature Data Logger

Features

  • Underwater operation
  • 10-year battery life
  • Holds over 500 days of data
  • User selectable sample rates
  • Very durable and robust
  • High temperature range (Nautilus135)

The AXIOM Nautilus is a specialty data logger designed for use in the bottling industry. It's unique slim design allows the logger to be put through most bottle necks. No wiring, or cables permits this logger to be easily introduced in any bottling company's quality control program.

Product Specifications

No. of Channels One. (Ambient temperature)
Sensor Type Negative Temperature Coefficient Thermistor (NTC) 10,000 ohms @ 25oC (77oF).
Resolution 0.4oC. (0.7oF).
Sensor Accuracy Nautilus85:+/-0.2oC (+/-0.4oF) @ 25o
Nautilus135:+/-0.5oC (+/-0.9oF) @ 77o
Size 18 mm x 127 mm (0.71" x 5.00").

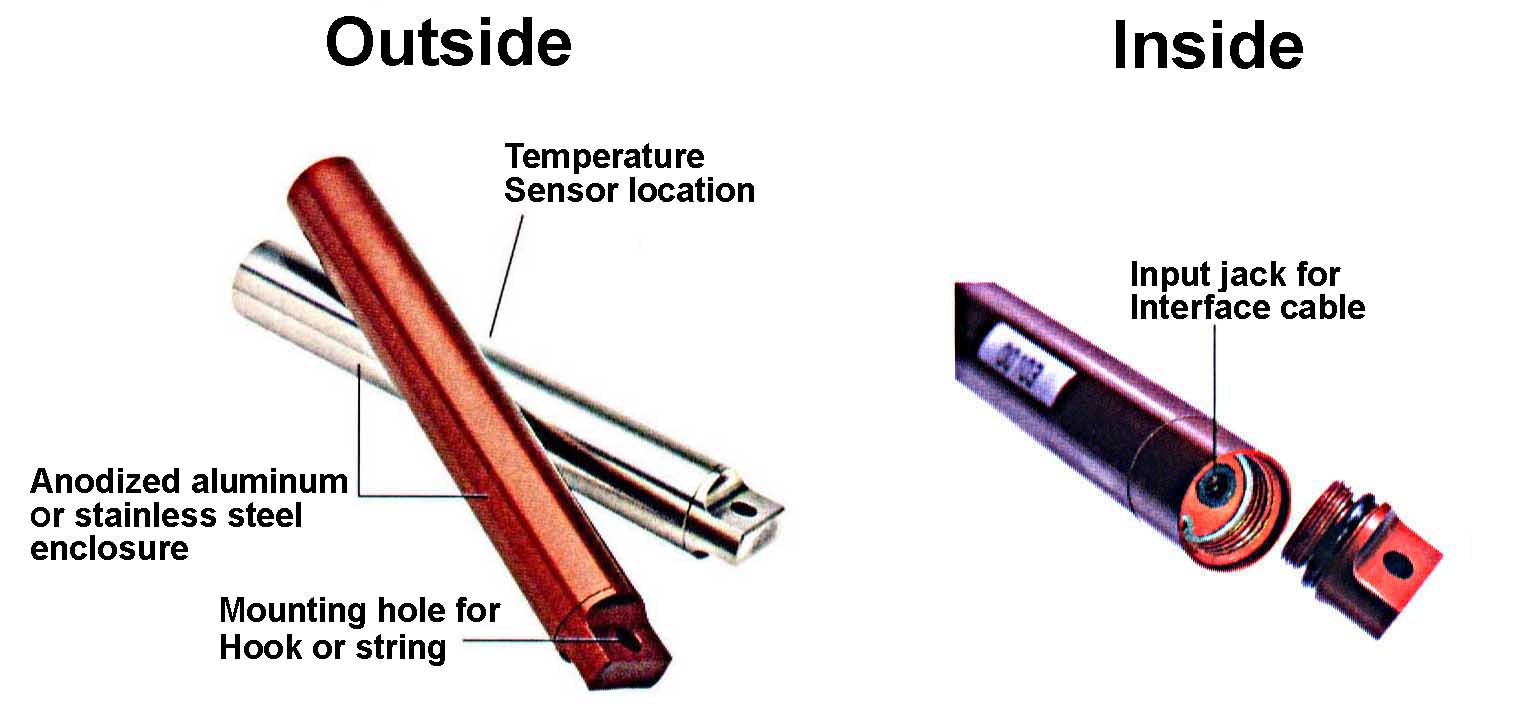

Case Material Anodized aluminum or stainless steel.
Weight  51 grams (1.8 ounces) - aluminum case.
112 grams (4 ounces) - stainless steel case.
Operating Limits Nautilus85: -40oC to 85oC (-40oF to 185oF) and waterproof.
Nautilus135: 10oC to 135oC (50oF to 275oF) and waterproof.
Operating Pressure Range Up to 2000 PSI.
Clock Accuracy +/-2 seconds per day.
Battery 3.6 volt Lithium, 0.95 Amp-Hour.
Power Consumption 5 to 10 micro amps (continuous).
Battery Life Nautilus85:10-years warranty (under normal use). Factory replaceable.
Nautilus135:3-years warranty (under normal use). Factory replaceable.
Mounting Locking hole on cap.
Memory Size 32 K (244,800 data points).
Sampling Methods 1. Continuous (First-in, First-out).
2. Stop when full (Fill-then-stop).
3. Delayed start.
Sampling Rates 8 seconds to 34 minute intervals. Readings stored to memory can be spot or averaged over the sample interval (except for the 8 second interval.)
PC Requirements IBM PC or 100% compatible running MS Windows 3.1, '95, '98, or NT, with at least 2 MB RAM, 2 MB of hard drive disk space and one free serial port.
Accuracy Curve Temperature Sensor Accuracy with AXIOM Nautilus
Software Specifications AXIOM Nautilus Software

Order Information

MODEL CASE CATALOG#
Nautilus85: NTL-100 Aluminum 01-0261
Nautilus85: NTL-101 Stainless 01-0262
Nautilus135: NTL-102 Aluminum 01-0263
Nautilus135: NTL-103 Stainless 01-0264
