ACR SmartReader 3 Specifications

Four Channel AC Current Data Logger

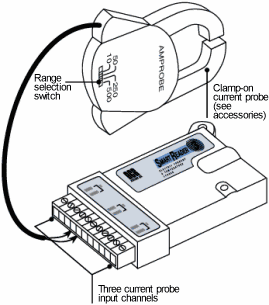

SmartReader 3 is a data logger for easy recording of electric current. You can use this logger with up to three external current probes for recording three-phase systems or related equipment simultaneously. The probes allow accurate readings to be taken without interrupting any circuits. Features: 4 channels 10-year battery life User-configurable Accessible remotely by modem Network capable

Product Specifications

No. of channels	Four. (One internal for ambient temperature and three external for use with ACR current probes).
Current Ranges
With A60FL (60 Hz) and A65CE (50 Hz)
current probes	5, 25, 100, and 250 Amps.
With A70FL (60 Hz) and A75CE (50 Hz)
current probes	10, 50, 250 and 500 Amps.
Accuracy	+/-4% F.S. above 10% of range.
Memory Size	32 KB.
Accuracy curve	Temperature Sensor Accuracy with ACR SmartReader
Common Specifications	ACR SmartReader Common Specifications
Software Specifications	TrendReader - ACR SmartReader Data Logger Software RealTime Graphing Software
Remote & Network communications	ACR SmartReader Networking and Remote Communications
Accessories	ACR AC Current Probes

Order Information

MODEL	MEMORY	CATALOG#
SR-003	32 KB	01-0026
